IN-LINE · WITH SEPARATE BEARING BRACKET

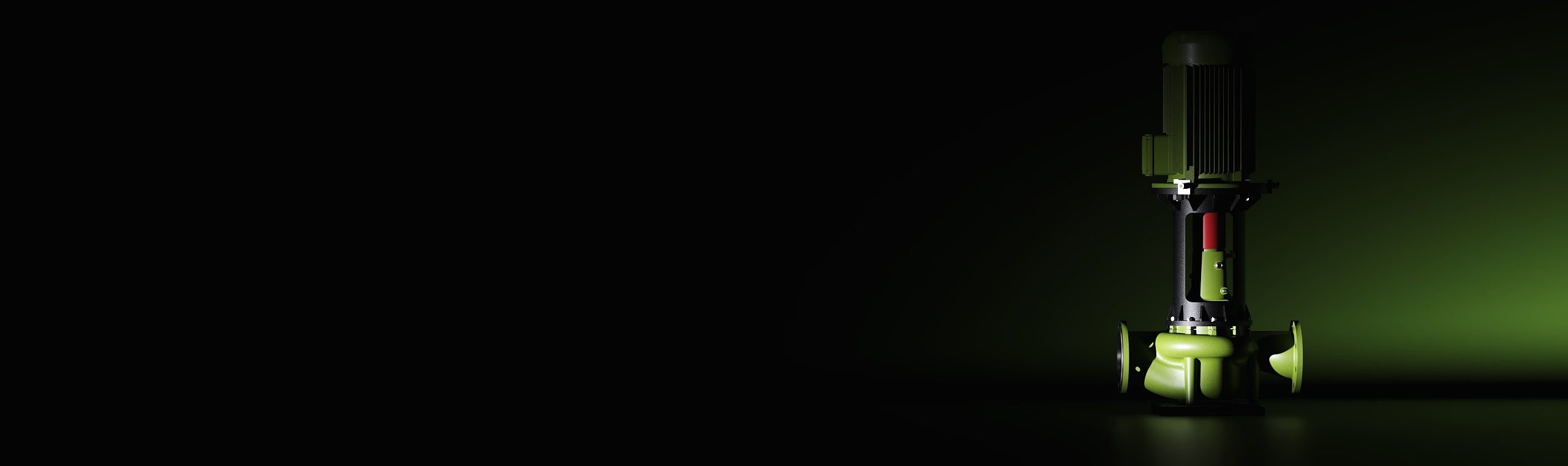

ECO In-line Centrifugal PumpsWith Separate Bearing Bracket
Technical Catalogue360° View
DN40 – DN250Discharge flange
up to 800 m³/hCapacity
up to 95 mHead
up to 2900 rpmSpeed
-10 °C to +140 °COperating temperature
10 – 16 barCasing pressure (Pmax)
Product Description
ECO In-line Centrifugal Pumps - With Separate Bearing Bracket
Vertical, single-stage, in-line centrifugal pumps with separate bearing bracket, volute casing and closed impeller, compliant with Energy Regulation EU 547/2012. The main dimensions comply with EN 733, and the suction and discharge flanges with EN 1092-2 / PN 16. The impellers are balanced in accordance with ISO 1940 Class 6.3. Thanks to the back-pull-out design, the bearing and rotor assembly can be removed without disconnecting the volute casing from the pipework.
Liquids handled
Used for transferring clean and slightly contaminated, low-viscosity liquids that are non-abrasive and free of fibres and solid particles.
Standards and design
EN 733Main dimensions
EN 1092-2 / PN 16Suction and discharge flanges
EU 547/2012Energy regulation
ISO 1940 Class 6.3Impeller balancing
Design featureBack-pull-outBearing and rotor assembly can be removed without disconnecting the volute casing from the pipework
Applications
Which industries is it used in?
12applications
Building Systems01
Iron and Steel Industry02
Marine03
Power Plant04
Food & Beverage Industry05
Heating & Cooling06
Chemical Industry07
Mining08
Petroleum Industry09
Water Supply and Treatment10
Agricultural Irrigation11
Fire Fighting12
360° view

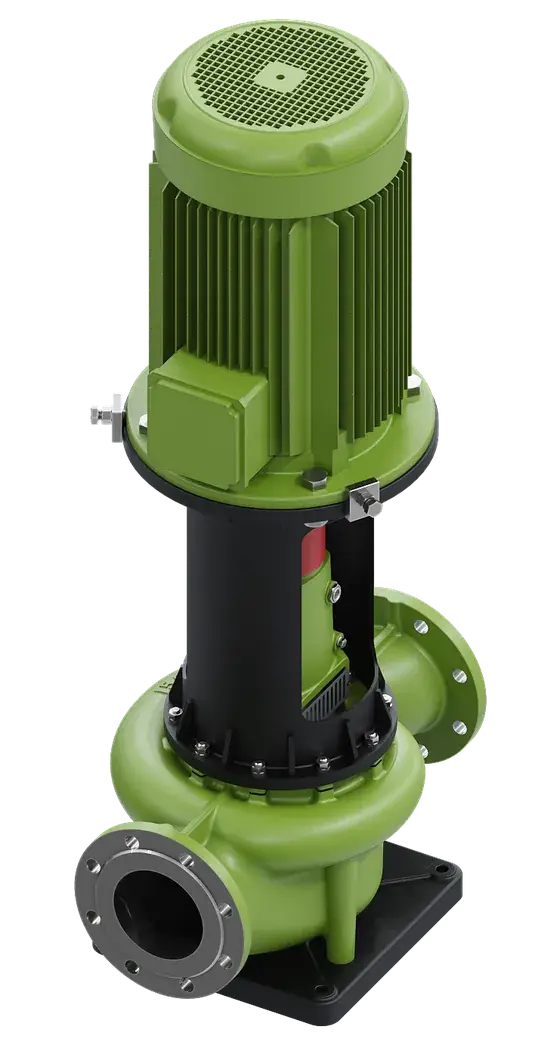

ECO In-line - With Separate Bearing Bracket 360° view
Rotate the pump by dragging or with the arrow keys; examine it from every angle.
Discharge flangeDN40 – DN250
Capacityup to 800 m³/h
Headup to 95 m
Speedup to 2900 rpm
Operating temperature-10 °C to +140 °C
Casing pressure (Pmax)10 – 16 bar
