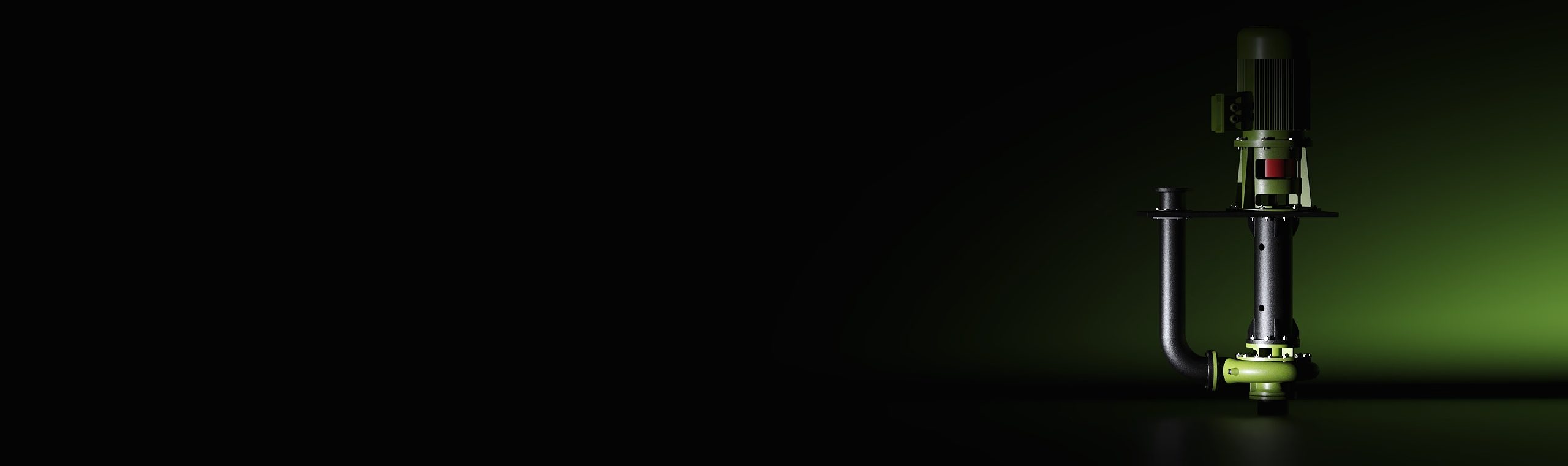

ECO Sump PumpsVertical

Technical Catalogue360° View

DN32 – DN200Discharge flange

up to 900 m³/hCapacity

up to 60 mHead

up to 1500 rpmSpeed

up to +95 °COperating temperature

10 barCasing pressure (Pmax)

01Product Description 02Applications 03360° View

Product Description

ECO Sump Pumps

Vertical, single-stage, end suction centrifugal pumps with volute casing, closed impeller and column pipe, compliant with Energy Regulation EU 547/2012. The main dimensions comply with EN 733, and the suction and discharge flanges with EN 1092-2 / PN 16. The impellers are balanced in accordance with ISO 1940 Class 6.3.

Liquids handled

ECO Sump Pumps are used for the transfer of non-abrasive, low-viscosity clean and slightly contaminated liquids containing no fibres or solid particles.

Standards and design

EN 733Main dimensions

EN 1092-2 / PN 16Suction and discharge flanges

EU 547/2012Energy regulation

ISO 1940 Class 6.3Impeller balancing

Design featureWith column pipeVertical, volute casing, single-stage, end suction, closed impeller centrifugal pump

Applications

Which industries is it used in?

7applications

Iron and Steel Industry01

Power Plant02

Food & Beverage Industry03

Paper Industry04

Chemical Industry05

Mining06

Petroleum Industry07

360° view

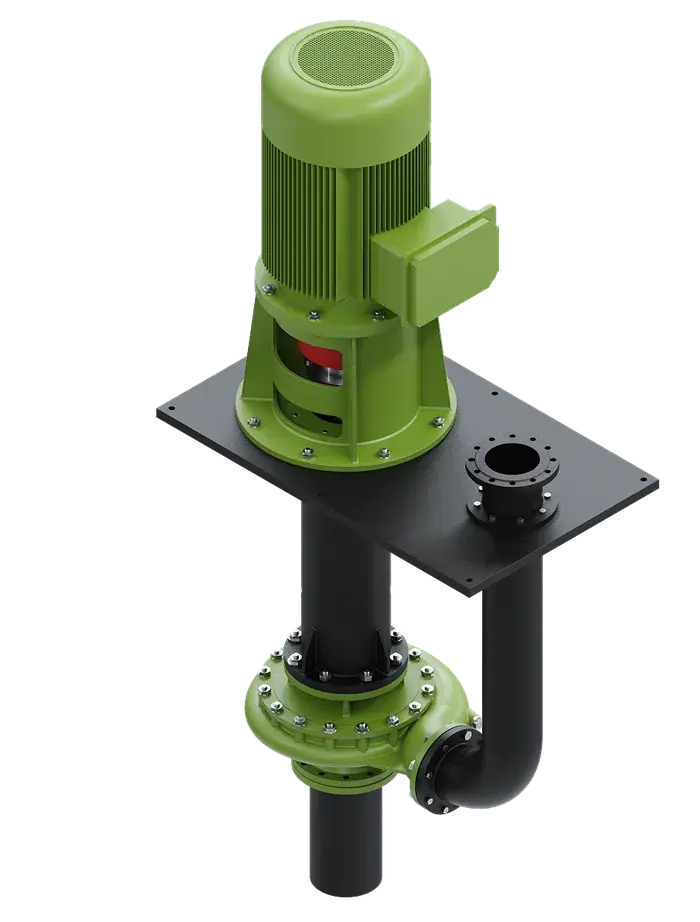

ECO Sump Pumps 360° view

Rotate the pump by dragging or with the arrow keys; examine it from every angle.

Discharge flangeDN32 – DN200

Capacityup to 900 m³/h

Headup to 60 m

Speedup to 1500 rpm

Operating temperatureup to +95 °C

Casing pressure (Pmax)10 bar
