POMPAProduct families
Pump families
From end suction norm pumps to API 610 process pumps, from pumps as turbines to booster sets: the nine pump families we design.
Istanbul - Türkiye · 41.0082° N, 28.9784° EGiresun - Türkiye · 40.9434° N, 38.2867° E
Pumps we design
The right pump for every application
9product families
11series
28types
528models
Pump
7
20
486
Booster set
2
5
15
Fire
2
3
27

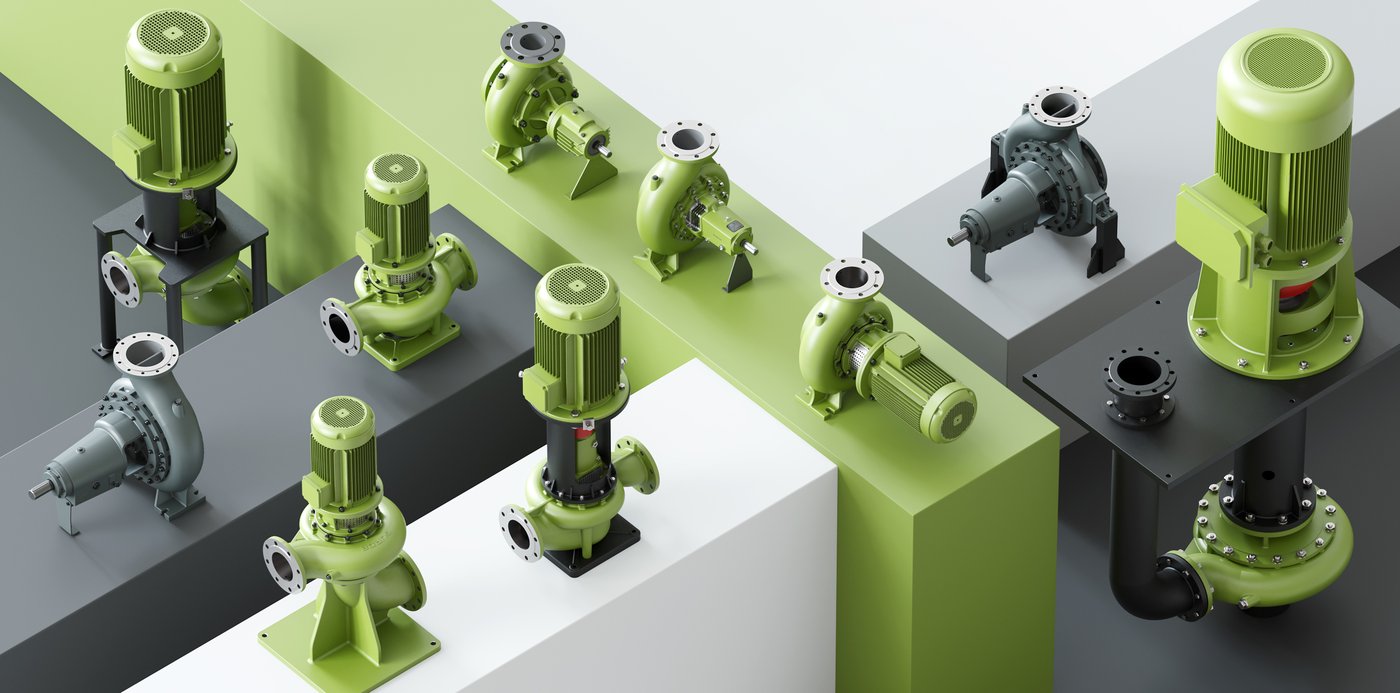

End Suction Centrifugal Pumps
Discharge flangeDN32 – DN250
Capacityup to 1500 m³/h
Headup to 160 m
Speedup to 3600 rpm
Operating temperature-10 °C to +350 °C
Casing pressure (Pmax)10 – 40 bar

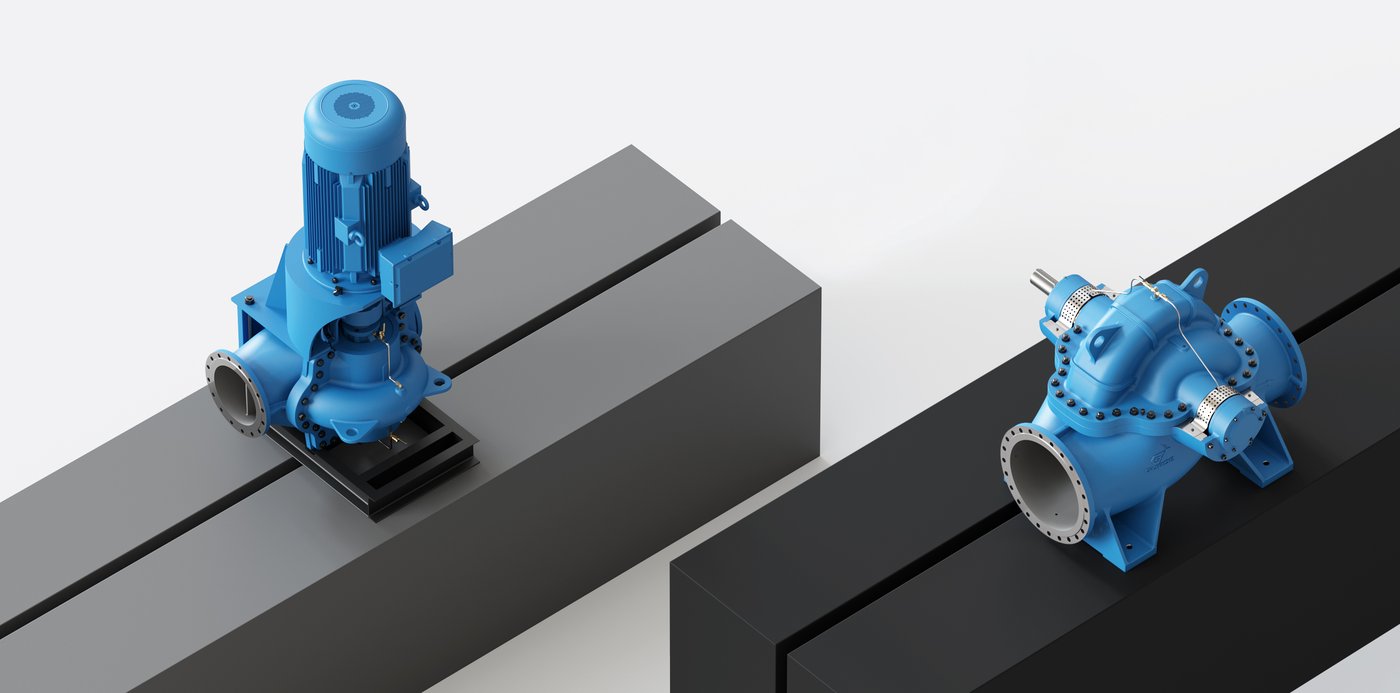

Double Suction Centrifugal Pumps
Discharge flangeDN65 – DN600
Capacityup to 6000 m³/h
Headup to 180 m
Speedup to 2900 rpm
Operating temperature-10 °C to +110 °C
Casing pressure (Pmax)16 – 25 bar

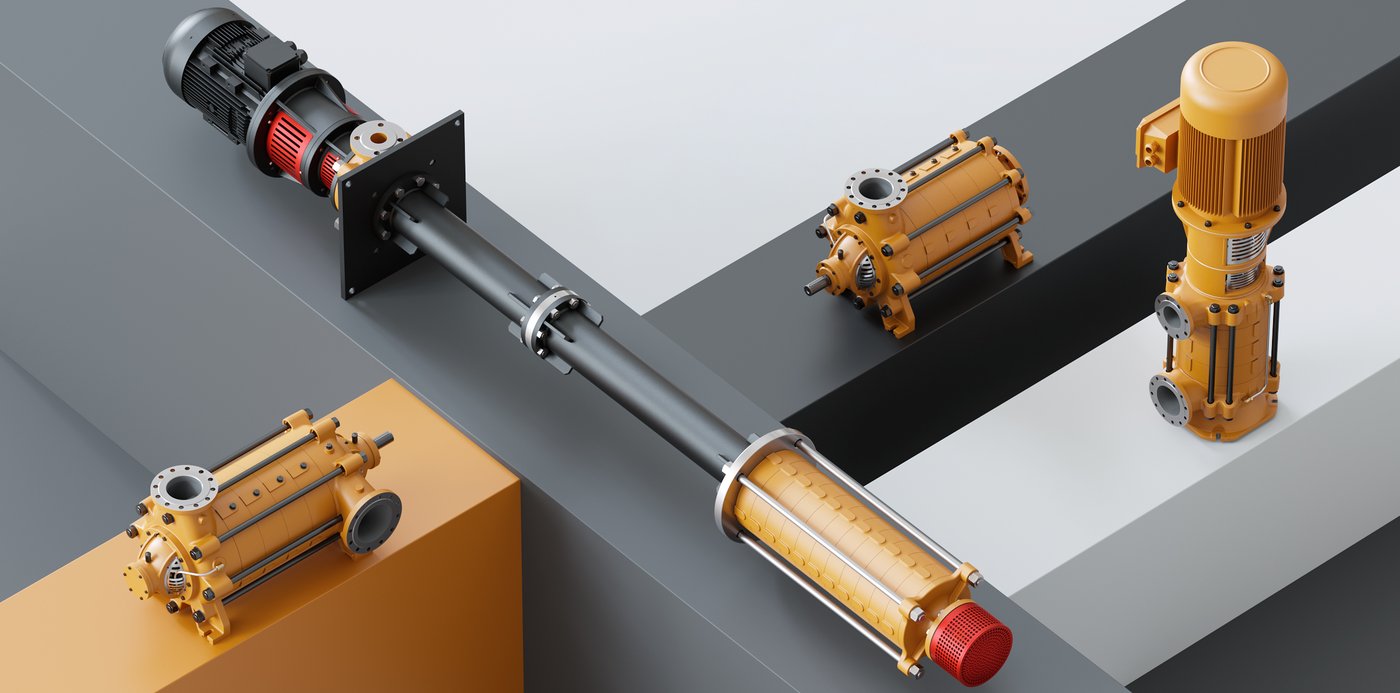

Multistage Centrifugal Pumps
Discharge flangeDN32 – DN300
Capacityup to 1200 m³/h
Headup to 600 m
Speedup to 2900 rpm
Operating temperature-10 °C to +140 °C
Casing pressure (Pmax)30 – 63 bar

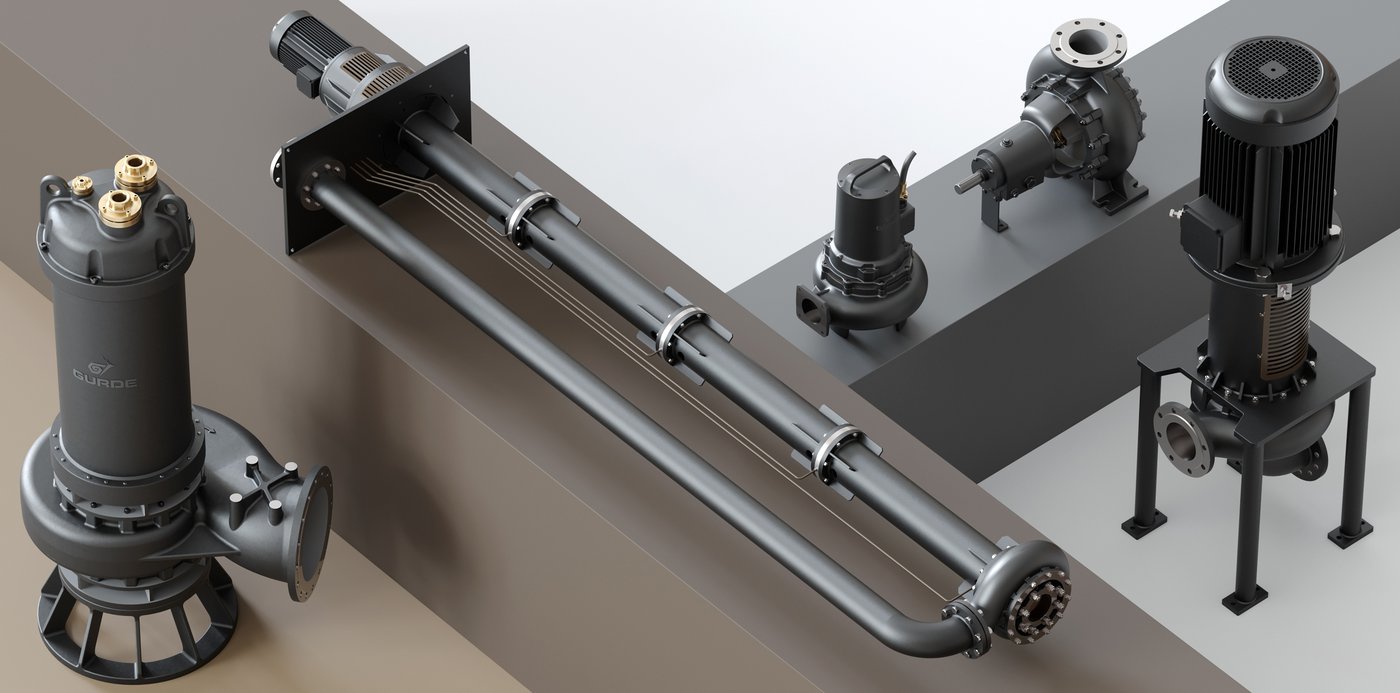

Waste Water & Submersible Pumps
Discharge flangeDN40 – DN400
Capacityup to 3000 m³/h
Headup to 110 m
Speedup to 2900 rpm
Operating temperature-10 °C to +110 °C
Casing pressure (Pmax)10 – 16 bar

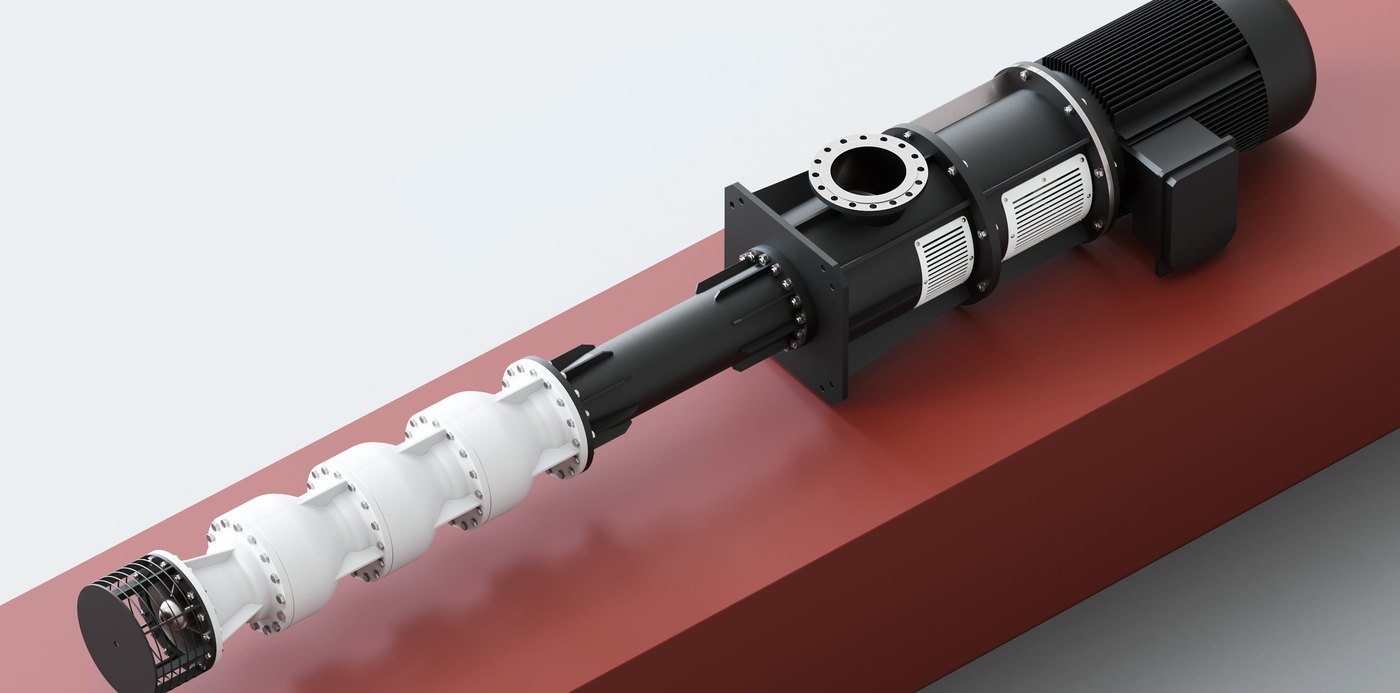

Vertical Line Shaft Mixed Flow Pumps
Discharge flangeDN100 – DN1000
Capacityup to 30000 m³/h
Headup to 600 m
Speedup to 1800 rpm
Operating temperature-25 °C to +140 °C
Casing pressure (Pmax)63 bar

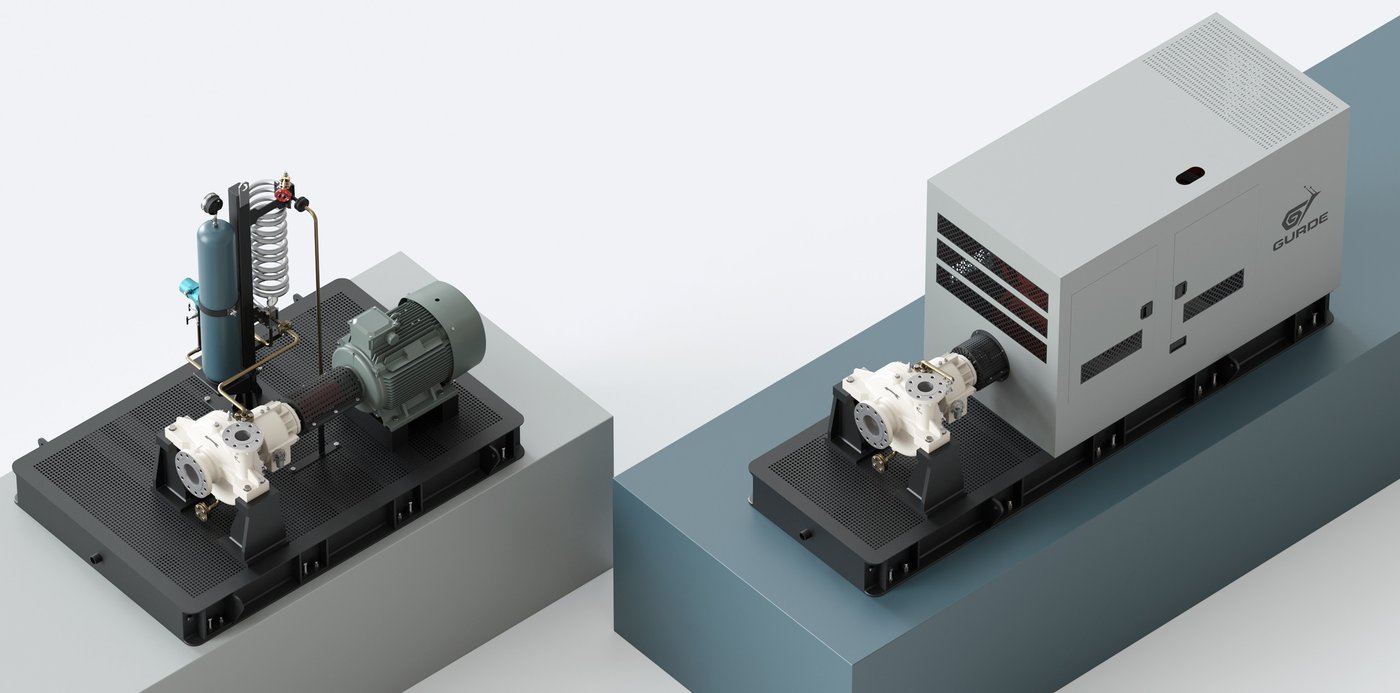

API 610 / ISO 13709 Process Pumps
Discharge flangeNPS 1" – NPS 10"
Capacityup to 1000 m³/h
Headup to 350 m
Speedup to 3600 rpm
Operating temperatureup to +350 °C
Casing pressure (Pmax)51 bar
![Pump as Turbine [HydroPaT]](../assets/pg-pat-en.jpg)

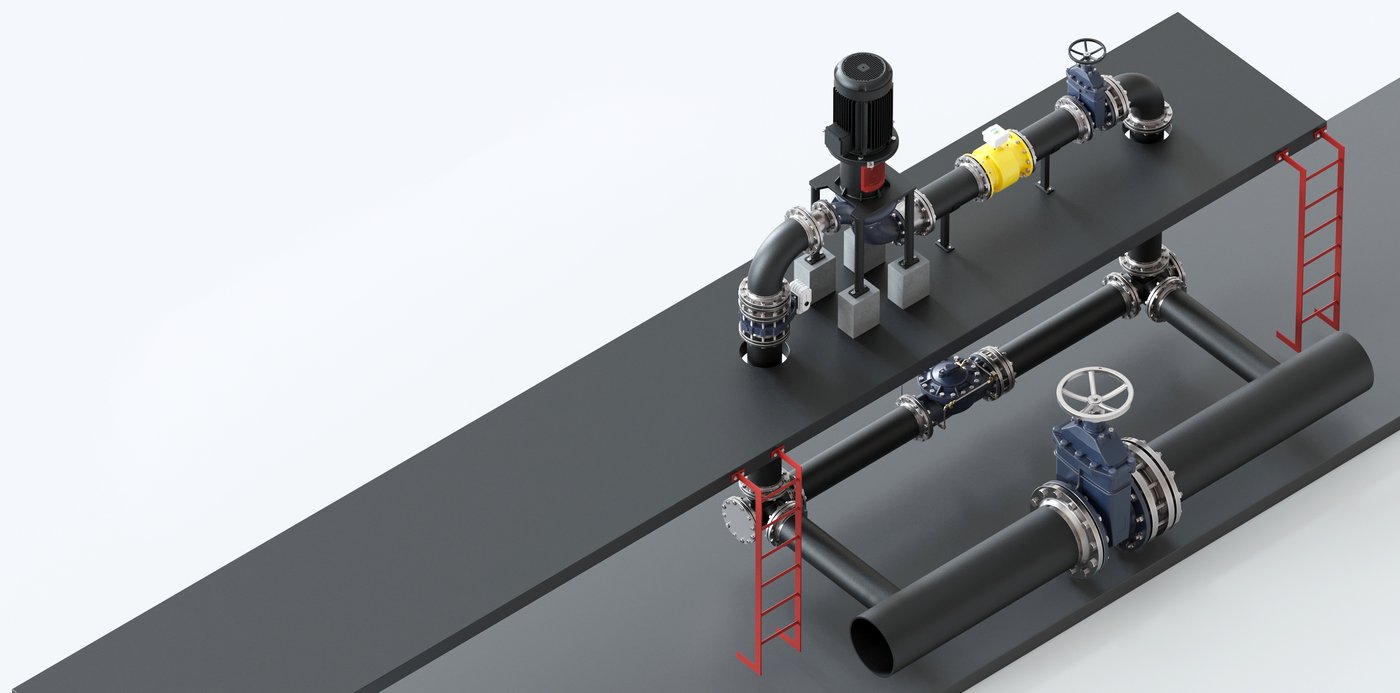

Pump as Turbine [HydroPaT]
Installed powerup to 500 kW
Net head (H)10 – 200 m
Capacity30 – 4000 m³/h
Speed4 – 6 – 8 pole synchronous speed

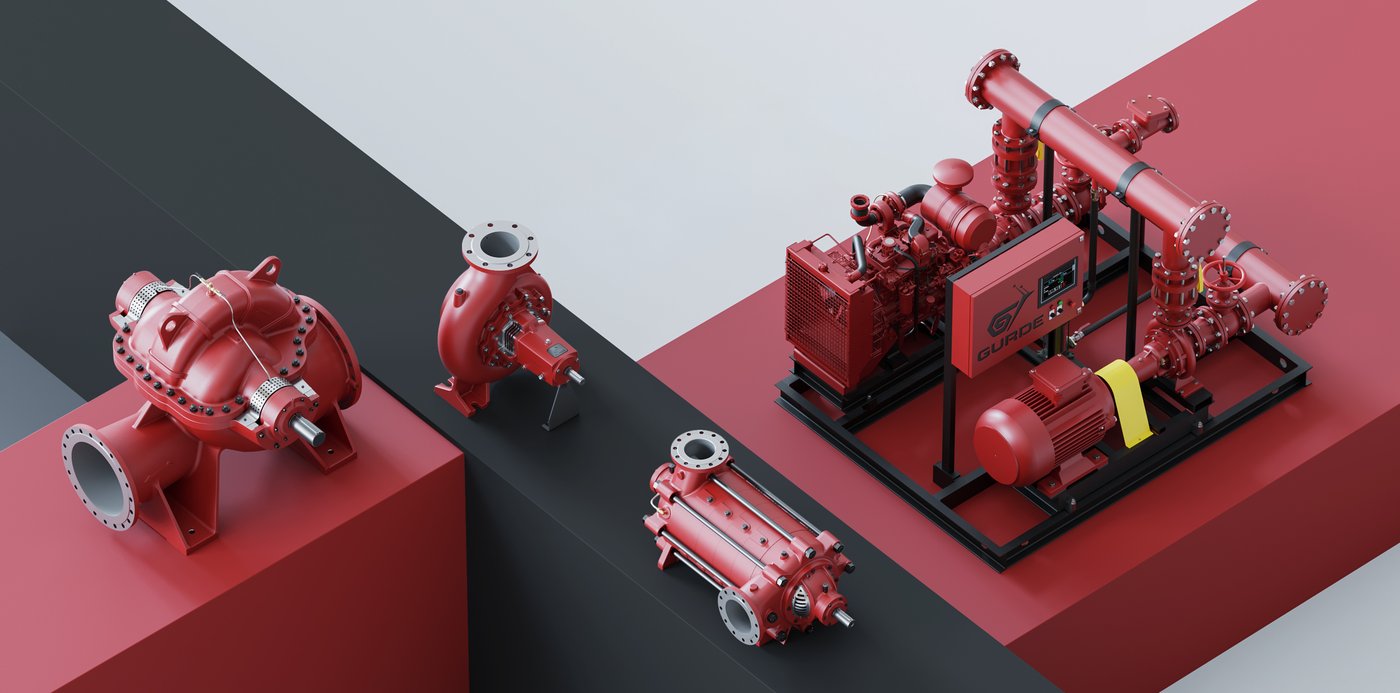

Fire Fighting Pumps
StandardNFPA 20 · UL Listed / FM Approved
Capacity25 – 5000 GPM
Head30 – 170 m
Casing pressure (Pmax)10 – 30 bar
Speedup to 3000 rpm

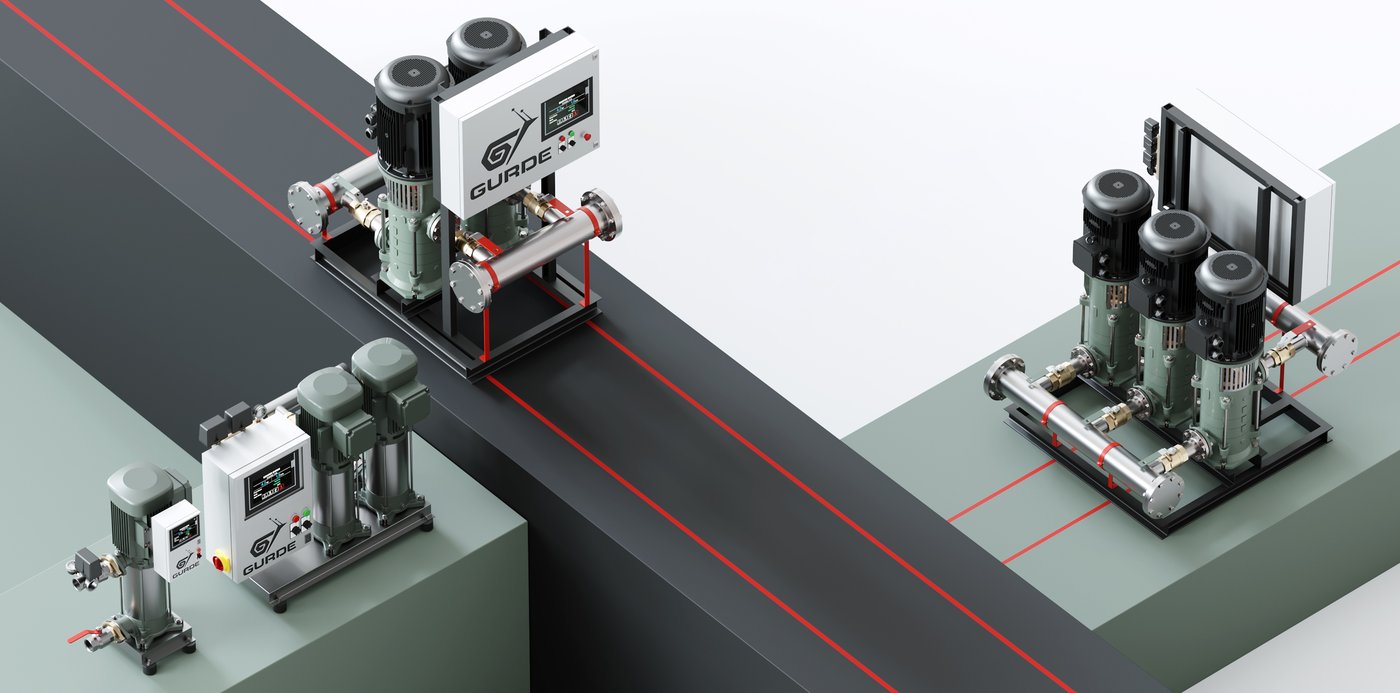

Booster Sets
Capacityup to 300 m³/h
Headup to 180 m
Speedup to 2900 rpm
Operating temperature0 °C to 70 °C
Casing pressure (Pmax)10 – 16 – 25 bar
